Retrospective: Yamaha FZ750 Genesis: 1985-1986, 1988

1988 Yamaha FZ750.

1988 Yamaha FZ750.

Photo Credit: Clement Salvadori

Clement Salvadori
June 25, 2008
Filed under Retro + Vintage Motorcycle Reviews, Yamaha Motorcycle Reviews

Bookmark and Share

(This Retrospective article was published in the June 2008 issue of Rider.)

STORY AND PHOTOS BY CLEMENT SALVADORI

It was the early 1980s when the Japanese really got their sporting act together with liquid-cooled engines, single-shock suspensions, and frames that could handle the power in the corners.

Yamaha was third in line, after Honda’s Interceptor 750 and Kawasaki’s Ninja 900, as the company put the FZ750 on the market in the spring of 1985. The 750 production class was hot back then, and Yamaha hit it right on target.

The motorcycle market and the world’s economy in general were imploding in the mid-1980s, but these designs had been in the pipeline and would not be denied. There was not much profit to be made from super-sporty models, but they were the flagships, got the attention, needed to be built…and the technology that was so expensive to come by would dribble down to more mundane bikes in future years. Every OEM was racing for the racer’s edge.

Of course the marketing folk in Hamamatsu wanted something to boast about, other than having a typical UJM in-line four with two overhead camshafts, and the engineers had provided this by adding a third intake valve to the heads. So instead of 16 valves to adjust there were now 20, but the theory was that with three valves more fuel could be sucked into the combustion chamber, and more fuel equals bigger explosion, and bigger explosion equals more power. And they stuck to that story for 20 years. Yamaha liked to call this the Genesis engine.
Nobody could deny that it was a pretty good machine, and the advertising boasted that the ’85 model had 102 horsepower at the crankshaft, and could do the quarter-mile in under 11 seconds. Slightly more real-world testing done by magazines showed 85 rear-wheel horses, and a quarter-mile in a little over 11 seconds. The public always allowed the ad guys a bit of slack, and a 15 percent reduction between crank and road-surface is acceptable.

1988 Yamaha FZ750.

1988 Yamaha FZ750.

This FZ750 really was a superb show of astute engineering, and the predecessor XJ750 was an instant dinosaur. First thing to be admired on the FZ was the narrowness of the grossly oversquare engine, with 68mm bores, 51.mm strokes, hard to achieve when the cylinder liners needed coolant. The easy part was tucking the alternator and starter behind the cylinders, the innovative bit was using wet-liners only at the hottest part of the cylinders, the middle. The skinny engine was only a shade over 16 inches wide, with a narrow crank, the whole thing sitting lower in the frame and keeping the weight down where it belonged. And it was a short engine/ tranny package as well, just 6 inches from crankshaft to output shaft.

The five-valve theory was valid, considering the fact that more valves meant smaller, lighter valves, and smaller valves could be moved up and down faster and did not have to move as far to allow the mixture in. The black box cut into the fun at 11,800 rpm. For the record, Yamaha had also contemplated a seven-valve head as well, but obvious complications put that one on the shelf.

1988 Yamaha FZ750.

1988 Yamaha FZ750.

The combustion chambers were shallow in the dome, matched with a shallow dip in the pistons, and reliefs for the valves—a long time ago engine designers figured that having a valve touch a piston was not a good idea. Yamaha understood that this new-fangled unleaded gasoline could create problems, especially when running a compression ratio of over 11 to 1. What the matching concavities did was to focus the intake of fuel from the 34mm carbs into the center, where the single spark plug was—Bang! A clean explosion was the result, with none of that dreary knocking. The carbon residues all went out a four-into-two exhaust…the astute reader will note that the original item has been changed to a four-into-one Yoshimura pipe on this 20-year-old.

The frame this sat in was a singularly unattractive but effective cradle made of box steel, with wide upper arms creating a perimeter around the top of the engine; there was not going to be any unnecessary flex in this chassis. The factory was kind enough to include several bolt-on sections in order to get the engine out. Overall wheelbase was 58.5 inches, and the steering head was angled at a steepish 25.5 degrees, both to ensure quick steering…and to concentrate engine weight onto the front wheel. To this end the cylinders of the engine were canted forward at 45 degrees, an unusually severe angle. The engine—which had no counterbalancers—was solidly bolted in, so there was the inevitable buzz at middling rpm, but since the bike was to be ridden at high rpm who should care?

1988 Yamaha FZ750.

1988 Yamaha FZ750.

A 39mm fork had a built-in brace, simple and functional air-assisted valving, and connected with the axle of a 16-inch front wheel carrying a 120/80 tire. And it was obvious that a slightly larger 140 tire could be fitted with no problem, the size that race-conscious riders preferred. This gave a rather short trail of 3.7 inches.

At the back was an aluminum swingarm with a single rising-rate shock that had adjustable spring preload and rebound damping, and an 18-inch wheel with a 130/80 tire—and a 160 size would easily go in there.

1988 Yamaha FZ750.

1988 Yamaha FZ750.

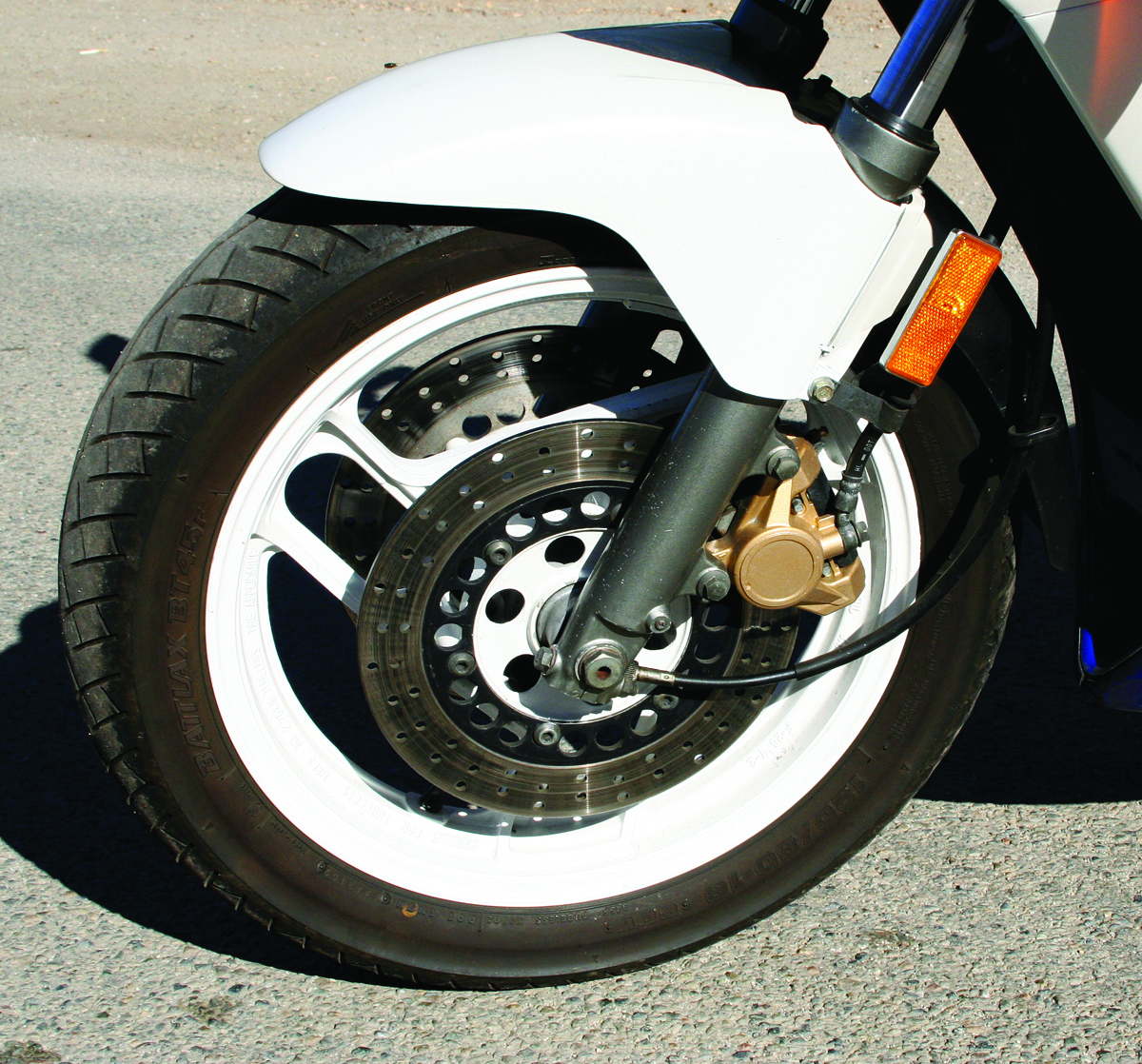

With a top speed approaching 150 mph (on a stock 750!?) good brakes were essential, so the front wheel had
a pair of ventilated discs with opposed-piston calipers and the latest in semi-metallic pads. The rear disc had a single piston pushing against the disc.

The original FZ750 had a half fairing with decals denoting its five valves. Which became a full fairing on the aberrant FZ700 of 1987, destroked to 697cc, with a GENESIS decal on the tailpiece. The owner of this model has replaced several body pieces for mysterious
reasons, and is lacking a couple of decals.

1988 Yamaha FZ750.

1988 Yamaha FZ750.

Time and development wait for no rider, and while the FZ700 was intended for the cost-conscious purchaser, the new ’87 FZR750R with the Deltabox frame and the way higher price was for the racer who wanted to win races. The FZ reappeared as a 750 in 1988, and then went the way of all out-moded motorcycles.
