2015 Aprilia Caponord 1200 ABS Travel Pack—Road Test

Greg Drevenstedt
July 8, 2014
Filed under Aprilia Motorcycle Reviews, Dual-Sport + Adventure Motorcycle Reviews, Featured Road Test, Sport + Sport Touring Motorcycle Reviews

Bookmark and Share

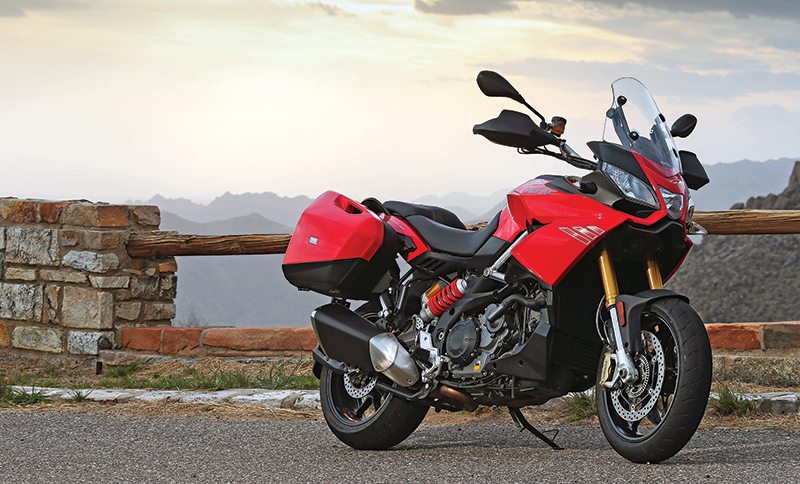

2015 Aprilia Caponord 1200 ABS Travel Pack

Revived in name but all-new in execution, the Caponord splits the difference between an adventure bike and a sport tourer. (Kevin Wing and Courtesy Aprilia)

Norway’s Nordkapp (North Cape) is a 1,000-foot cliff overlooking the frigid Barents Sea, reached by riding through a 4.3-mile undersea tunnel on the world’s northernmost road. When you name a motorcycle Caponord, Italian for North Cape, you’re saying something about its touring capability. Aprilia first used the appellation on its 2002 ETV1000 Caponord, an adventure tourer powered by a detuned version of the Rotax-built 60-degree V-twin from its RSV Mille superbike. We didn’t ride it to the land of the midnight sun, but after flogging the first Caponord for several thousand miles, we deemed it a “quality, competent, fun-to-ride machine” (Rider, October 2001). Alas, sales were poor and it was dropped from Aprilia’s lineup for 2008.

Aprilia Dynamic Damping

Aprilia Dynamic Damping (ADD) automatically adjusts compression and rebound damping every 10 milliseconds. The Caponord is the first production motorcycle offered with automatic rear preload adjustment.

Since then, Aprilia has been busy expanding its model range, building its own engines and winning two World Superbike championships. It has also been on the forefront of new technology, equipping its RSV4 and Tuono sportbikes with throttle-by-wire power modes and Aprilia Performance Ride Control (APRC), an electronics package featuring traction control, wheelie control, launch control and a quick shifter. Given the recent surge in popularity of adventure-touring bikes, it comes as no surprise that Aprilia revived the Caponord for 2015. But unlike the ETV1000, which had a 19-inch front wheel, spoked rims with dual-sport tires and a large plastic engine guard, the new Caponord has no off-road pretensions. It’s a sport tourer in adventure-touring clothing, combining corner-strafing performance with the styling, ergonomics and long-travel suspension of a big dualie. Lightweight 17-inch wheels shod with sticky Dunlop Sportmax Qualifier II tires and the lack of an enduro setting among its engine modes reveal the Caponord’s true colors.

Everything about the loquaciously labeled Caponord 1200 ABS Travel Pack is a departure from its predecessor, from its sleek bodywork (sharing squinty triple headlights with the RSV4 and Tuono) to its steel-and-aluminum frame and 1,200cc V-twin (adapted from the Dorsoduro 1200, a super-sized supermoto not sold in the U.S.). A bunny’s litter of acronyms—RbW, ABS, ATC, ACC and ADD—are shorthand for its full complement of electronics: ride-by-wire, anti-lock braking system, Aprilia Traction Control, Aprilia Cruise Control and Aprilia Dynamic Damping. All this whiz-bang gadgetry is standard equipment on the Travel Pack model, the only version available in the U.S., along with 29-liter color-matched saddlebags and a centerstand. A comfortable two-up seat with passenger grab handles, a manually adjustable windscreen, trip computer, 6.3-gallon fuel tank, 690-watt generator and hand guards round out the Caponord’s touring amenities, making a long ride to the North Cape sound like a walk in the park.

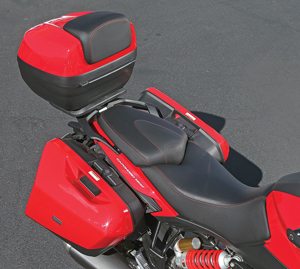

saddlebags, top trunk

Color-matched 29-liter saddlebags are standard equipment; the 40-liter top trunk with backrest pad is an accessory ($399.95).

Whereas the 184-horsepower, 1,000cc V-4 in the RSV4 and Tuono is frighteningly ferocious, the Caponord’s 1,197cc 90-degree V-twin is a throbbing, torquey example of all that is joyful and triumphant about internal combustion. It lopes at idle, purrs at cruising speeds and rumbles mightily at full honk, with a single exhaust pipe that exudes sonorous thunder. Modest vibration creeps into the rider triangle and a hint of engine heat is felt on the right side, but neither is bothersome. Cooling is liquid, camshafts are double overhead, and four valves, two spark plugs, dual injectors and a 52mm throttle body serve each cylinder. Aprilia claims 125 horsepower at 8,250 rpm and 85 lb-ft of torque at 6,800 rpm, with peak torque sitting atop a broad plateau that spreads across the rev range. The engine stumbles a bit at low revs, but is strong and eager from 3,000 rpm up to the 9,000 rpm redline (discovered by smacking abruptly into the rev limiter; the digital tachometer goes up to 12,000 rpm and there’s no redline on the display). Clutch pull is firm, but otherwise shifting the 6-speed transmission is a breeze, and chain final drive reduces weight but requires regular maintenance.

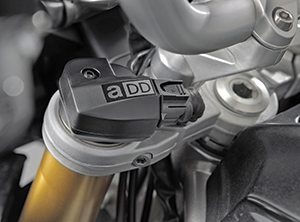

air-pressure sensor that measures stroke

Atop the left fork cap is a patented air-pressure sensor that measures stroke. Front spring preload must be adjusted manually.

Pressing the starter button allows the rider to alternate between three engine modes on the fly, though the throttle must be closed for changes to take effect. “Sport” delivers full power with rapid throttle response, “Touring” delivers full power with softer throttle response, and “Rain” limits output to 100 horsepower for slippery conditions. Sport mode is exciting but demands finesse due to on/off throttle abruptness at lower revs, and Rain mode came in handy on a gravel road but was otherwise unnecessary in drought-stricken Southern California, so I spent most of my time in user-friendly Touring mode. On the right switchpod are buttons for the easy-to-use cruise control and optional three-level heated grips. Small buttons next to the instrument panel, which are functional only when the bike is stopped, cycle through menus to change rear preload, traction control (three levels or off) and ABS (on/off).

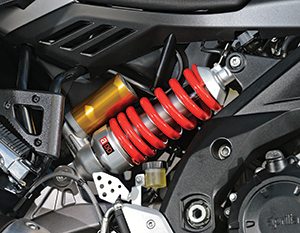

German suspension manufacturer Sachs builds adaptive suspension systems for BMW and Ducati that adjust damping automatically in response to changing road and riding conditions. These systems are called “semi-active” because the rider must adjust spring preload, either manually or with pushbutton presets. The Caponord’s Sachs-made Aprilia Dynamic Damping system features four patented innovations: a fork air-pressure sensor to measure stroke, a “comfort oriented” damping algorithm, “map-builder” software that controls ADD and—offered for the first time on a production motorcycle—a fully active rear shock that automatically adjusts both damping and preload. While other semi-active systems allow the rider to choose preset damping levels ranging from soft to hard, ADD is a single-map system designed to provide the best setting in every condition. Since damping adjusts automatically, all the rider has left to do is change spring preload—manually on the fork and by selecting automatic mode or presets (solo, solo plus luggage, two-up, two-up plus luggage) for the rear shock.

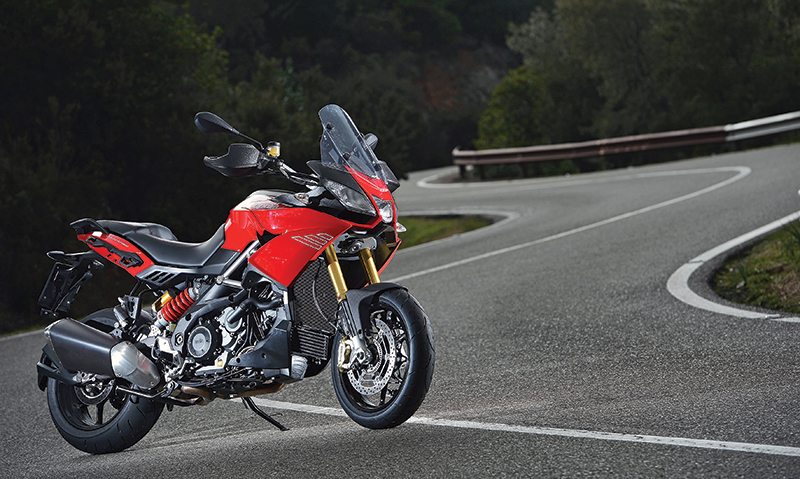

Caponord

With its saddlebags removed, the Caponord cuts a slender, go-fast profile, except for all of the exposed and unsightly cables and hoses. Vulnerable underbelly means off-road riding should be kept to a minimum.

For sport touring, ADD works very well. With 6.6 inches of travel on the 43mm male-slider fork and 5.9 inches of travel on the horizontally mounted shock, the suspension absorbs everything from minor pavement ripples to major frost-heaved, maintenance-deferred undulations. The “comfort oriented” damping lives up to its name with ample plushness and excellent chassis stability. At a sporting pace I wished for more firmness, but only when I was really caning it. Automatic preload adjustment is a very useful feature, though I grew tired of the instrument display constantly cycling through the icons for helmets and luggage when in that mode.

Connecting the Caponord’s V-twin and suspension is a robust tubular-steel trellis frame with die-cast aluminum side plates and a cast aluminum swingarm, and supporting the seat and saddlebags is a tubular-steel subframe. The tail section is slender and attractive with the saddlebags removed, and the exhaust pipe can be raised for more cornering clearance. Stability-oriented steering geometry (26.1-degree rake, 4.9-inch trail) and a rangy 61.6-inch wheelbase make the Caponord reluctant to turn-in, but its wide handlebar provides plenty of steering leverage and the bike holds a line well. Fantastic Brembo brakes—320mm front discs clamped by M432 radial monobloc 4-piston calipers and a single 240mm rear disc squeezed by a 1-piston caliper—and standard, two-channel ABS are able to freeze-frame blurry scenery with good feedback at the lever.

Caponord Travel Pack seat

Available in Formula Red or Glam White, with the optional trunk the Caponord provides 98 liters of storage capacity. The two-up seat is supportive and comfortable, but its 33.1-inch height is not adjustable.

Like other adventure bikes, the Caponord has a neutral riding position with ample legroom and an easy reach to the handlebar. The wide, flat seat is 33.1 inches high, fine for my 34-inch inseam but a stretch for those of average or lower height (an accessory low seat is available). Thickly padded seats pamper both the rider and passenger; I logged an 11-hour, 550-mile backroad test ride without complaint. Hand guards and a small, height-adjustable windscreen provide decent wind protection, but wind noise and turbulence become tiresome at speed. For long-haul touring, a windscreen with more coverage (Aprilia doesn’t yet offer one) and higher-mileage tires—the rear Qualifier II was down to its wear bars after just 2,500 miles—would be sensible upgrades. A top trunk, tankbag, heated grips and other accessories are available. Android and iPhone smartphone users can download the Aprilia Multimedia Platform app and pair it to their bike via Bluetooth (an optional $259.90 ECU and wiring kit is required). The app includes the Caponord owner’s manual (bring your reading glasses) and, when the phone is mounted on the bike, provides additional dash display, navigation and trip functions.

Fast, comfortable and well equipped, the Aprilia Caponord 1200 ABS Travel Pack is a sport tourer with Italian flair and state-of-the-art technology. Except for ABS, which is a “need to have” feature on modern, powerful street bikes, the rest of the Caponord’s electronics fall into the “nice to have” category. Once I figured out my favorite settings—Touring mode, traction control level 1 and automatic rear preload adjustment—I let the electronics do their thing in the background while I enjoyed the ride. With such agreeable ergonomics and good fuel range (221 miles based on our 35 mpg average), stops became a matter of desire rather than need. Another attractive feature of the Caponord, especially given its high level of componentry and specification, is its $15,499 price, which is $4,500 less than a comparably equipped Ducati Multistrada 1200 S Touring. So whether you’re headed to the North Cape or the north side of town, the Caponord is ready. Don’t forget your scarf.

adventure-styled Aprilia Caponord

Lighter and cheaper than traditional sport tourers, the adventure-styled Caponord provides comparable levels of performance, sophistication, comfort and luggage capacity, but falls short in terms of wind protection.

Aprilia Caponord 1200 ABS Travel Pack

Base Price: $15,499
Price as Tested: $16,043 (heated grips, Aprilia Multimedia Platform)
Warranty: 2 yrs., unltd. miles
Website: apriliausa.com

Engine
Type: Liquid-cooled, transverse 90-degree V-twin
Displacement: 1,197cc
Bore x Stroke: 106.0 x 67.8mm
Compression Ratio: 12.0:1
Valve Train: DOHC, 4 valves per cyl.
Valve Insp. Interval: 12,500 miles
Fuel Delivery: EFI w/ 52mm throttle bodies x 2
Lubrication System: Wet sump, 3.5-qt. cap.
Transmission: 6-speed, hydraulically actuated wet clutch
Final Drive: O-ring chain

Electrical
Ignition: Magneti Marelli 7SM twin-spark electronic
Charging Output: 690 watts max.
Battery: 12V 12AH

Chassis
Frame: Tubular-steel w/ aluminum side plates; cast aluminum swingarm
Wheelbase: 61.6 in.
Rake/Trail: 26.1 degrees/4.9 in.
Seat Height: 33.1 in.
Suspension, Front: Sachs 43mm male-slider w/ electronic compression & rebound adj., manual preload, 6.6-in. travel
Rear: Sachs single shock w/ electronic full adj., 5.9-in. travel
Brakes, Front: Dual 320mm floating discs w/ opposed radial 4-piston monoblock calipers & ABS
Rear: Single 240mm disc w/ 1-piston caliper & ABS
Wheels, Front: Cast, 3.50 x 17 in.
Rear: Cast, 6.00 x 17 in.
Tires, Front: 120/70-R17
Rear: 180/55-R17
Wet Weight: 586 lbs.
Load Capacity: 456 lbs.
GVWR: 1,042 lbs.

Performance
Fuel Capacity: 6.3 gals., last 1.3 gals. warning light on
MPG: 90 PON min. (low/avg/high) 32.1/35.1/39.8
Estimated Range: 221 miles
Indicated RPM at 60 MPH: 3,500

(This article Cape Crusader was published in the July 2014 issue of Rider magazine.)

Caponord 1200 instrumentation

Instrumentation is fully digital and packed with info: rpm, speed, fuel level, engine temp, engine mode, gear position, trip function, traction control level and rear preload setting. Engine mode can be changed on the fly, but ABS, TC and ADD can only be changed when stopped.

Caponord’s 1,197cc 90-degree V-twin

Adapted from the Dorsoduro 1200, the Caponord’s 1,197cc 90-degree V-twin has been tuned for a broad spread of torque. An exhaust valve enhances engine response and the joyful noise emanating from the pipe.

Aprilia Caponord 1200 ABS Travel Pack

2015 Aprilia Caponord 1200 ABS Travel Pack

Caponord 1200 tires, brakes

Sportbike wheels (from the RSV4), tires and brakes help the Caponord stick and stop like a champ.

Comments

One Response to “2015 Aprilia Caponord 1200 ABS Travel Pack—Road Test”

  1. Mike Barone on September 17th, 2014 9:22 am

    I owned a 2002 Caponord and checking pix three from the top, it certainly looks to me that this small area and seat will not work for most passengers including my wife, yet the test does not include comments about two up riding or a summary from a passenger on this new Caponord.

    The 2002 Caponord was an amazing two up bike!

    My issue with this and most test reports on Adv Tour bikes is there seldom any mention of the two up capability on bikes that passengers would enjoy and be comfortable.

    Adv Tour bikes can be perfect for comfy two up short rides and long tours, yet competent and fun solo inc sport rides……a point often missed by the potential buyers and manufacturers in design options and advertising.

    Just a weee bit of coverage on the two up capabilities would do it ……maybe use this as a starting point.

    1. Passenger seat width and length

    2. Footpeg distance and angle relationship with the passenger seat

    3. Top bag relationship with the rear of the passenger seat. (One bike we test rode had the top rack taking the rear two inches of the passenger seat)

    4. Side bag relationship to the passenger footpegs. (Same bike as in item 3 we tested had the front of the side bags 1.5″ from the footpegs!!!)

    5. Distance between the passenger and rider going down the road……..smashed together or some space.

    6. Wind effect on passenger at normal speeds. Massive head buffeting??? Again, this varies depending on the height of the passenger, but the passenger in test height should be stated and also passenger views included.

    For those of us that enjoy spending some to most rides with the love of our life being along on trips, but also having the same bike be competent for solo casual or sport rides Adv Tour bikes are a great option………now if we could only get testers to include the two up part to help us decide what to test ride next.
