2006 Harley-Davidson FXDLI Dyna Low Rider Road Test

2006 Harley-Davidson FXDLI Dyna Low Rider.

2006 Harley-Davidson FXDLI Dyna Low Rider

Photo Credit: Scott Hirko

Bill Stermer
January 1, 2007
Filed under Cruiser + Touring Motorcycle Reviews, Harley-Davidson Motorcycle Road Tests: Reviews on Harley Motorcycles, Road Tests

Bookmark and Share

In the beginning were the singles, then Harley-Davidson brought out its first V-twin in 1909. Along came the knuckles, which begat the panheads, which begat the shovels and the Evolution engine, followed by the Twin Cam 88. The V-Rod introduced the Revolution engine, and now the Dyna series has been so completely revised for 2006 that (to rip a headline from today’s newspapers) it’s obviously a product of intelligent design. The Dyna not only gets new frame geometry and a new fork, but (gasp!) it’s the first Harley-Davidson to come with a standard six-speed transmission. And best of all, it all really works.

To understand how far Harley-Davidson has come with the new Dyna, you have to appreciate the rap against Harleys from the distant past: they suffered from engine vibration, oil leaks, poor brakes, clunky shifting, heavy clutch pull and a lack of cornering clearance. In the early 1980s and continuing through the Evolution series, H-D dealt quite successfully with the first couple of problems through improved manufacturing techniques and rubber engine mounting. The introduction of the five-speed transmission lowered engine rpm in high gear, and this, along with belt final drive, delivered smoother riding.

More recently, Harley-Davidson has introduced four-piston brake calipers, which were a huge improvement over the anti-stop brakes of the past. Now for 2006, all Harleys get the mechanical changes that result in a lightened clutch pull and improved shifting. Which leads us finally to the total revamp of the Dyna series.

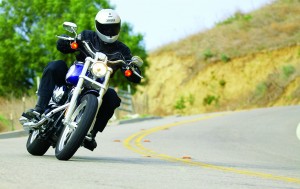

The seat may be low, but the Low Rider has adequate cornering clearance.

The seat may be low, but the Low Rider has adequate cornering clearance.

The roots of the Dyna series extend back to the 1971 FX Super Glide. Meanwhile, the original FXS Low Rider of 1977 is the direct forerunner of our test bike. The Dyna chassis was introduced for 1991, and featured an all-new internal frame with a two-point engine isolation mounting system to prevent most of the vibes from reaching the rider. Then for 1999, the Dyna series received the new Twin Cam 88 engine. The Dyna’s distinguishing marks are that it is a cruiser that, unlike the Softail, has exposed shock absorbers.

Like you, we thought that the Dyna was a curious choice to be the first model to receive the Cruise Drive six-speed transmission, so I asked a Harley-Davidson spokesman about it. He explained that the Dyna was one of the oldest models in the fleet, was thus most urgently in need of upgrading. You may recall that Harley-Davidson has previously offered a six-speed as a bolt-on accessory, but the spokesman pointed out that this new standard box is in no way related to the accessory tranny. It has totally different gears and cases, and the new transmission will not retro-fit previous models as certain changes have been made to the Twin Cam engine in the Dynas to better incorporate that new tranny.

Finally, when I observed that I expected the six-speed to eventually proliferate throughout the Harley Big Twin lineup, he cautioned that he hadn’t said that, and that he would not make such a prediction. OK, after 28 years of dealing with PR people I know the game-however, if six-speeds don’t eventually proliferate throughout the Big Twin lineup, I’ll eat your black T-shirt.

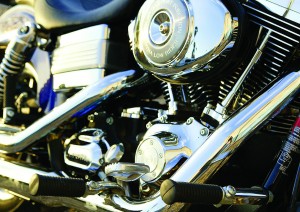

With good torque and the new six-speed, there will be a gear for every situation.

With good torque and the new six-speed, there will be a gear for every situation.

The list of changes to the Dyna line for 2006 is long and significant. If you saw our test of the Harley Ultra Classic Electra Glide in the January issue, you’re already familiar with the redesign of the clutch’s ball-and-ramp mechanism, and the lighter spring that provides a 35 percent reduction in peak clutch-lever effort. This feature is incorporated on all 2006 Harley models, is immediately noticeable and certainly welcome.

Walk around the new Dyna Low Rider, and notice that little “six speed” emblem on the transmission. The changes to the Dyna’s Twin Cam engine were made, H-D reports, to both interface with the new six-speed and to “enhance overall customer satisfaction” with the engine. The cam-plate design has been improved with a new roller chain, plain cam bearings and a new hydraulic automatic chain tensioner. The oil pump has improvements that, according to H-D, give it 10 percent more flow and 23 percent more scavenging capacity. The engine gets new adapters, one for the integral oil filter and another for the oil cooler. That new interface between the engine and transmission incorporates integral oil passages. A new inner and outer housing on the primary drive incorporates a new automatic primary chain tensioner that eliminates the need for chain adjustments and the inspection cover. Finally, the primary drive ratio has been raised from 1.44:1 to 1.353:1.

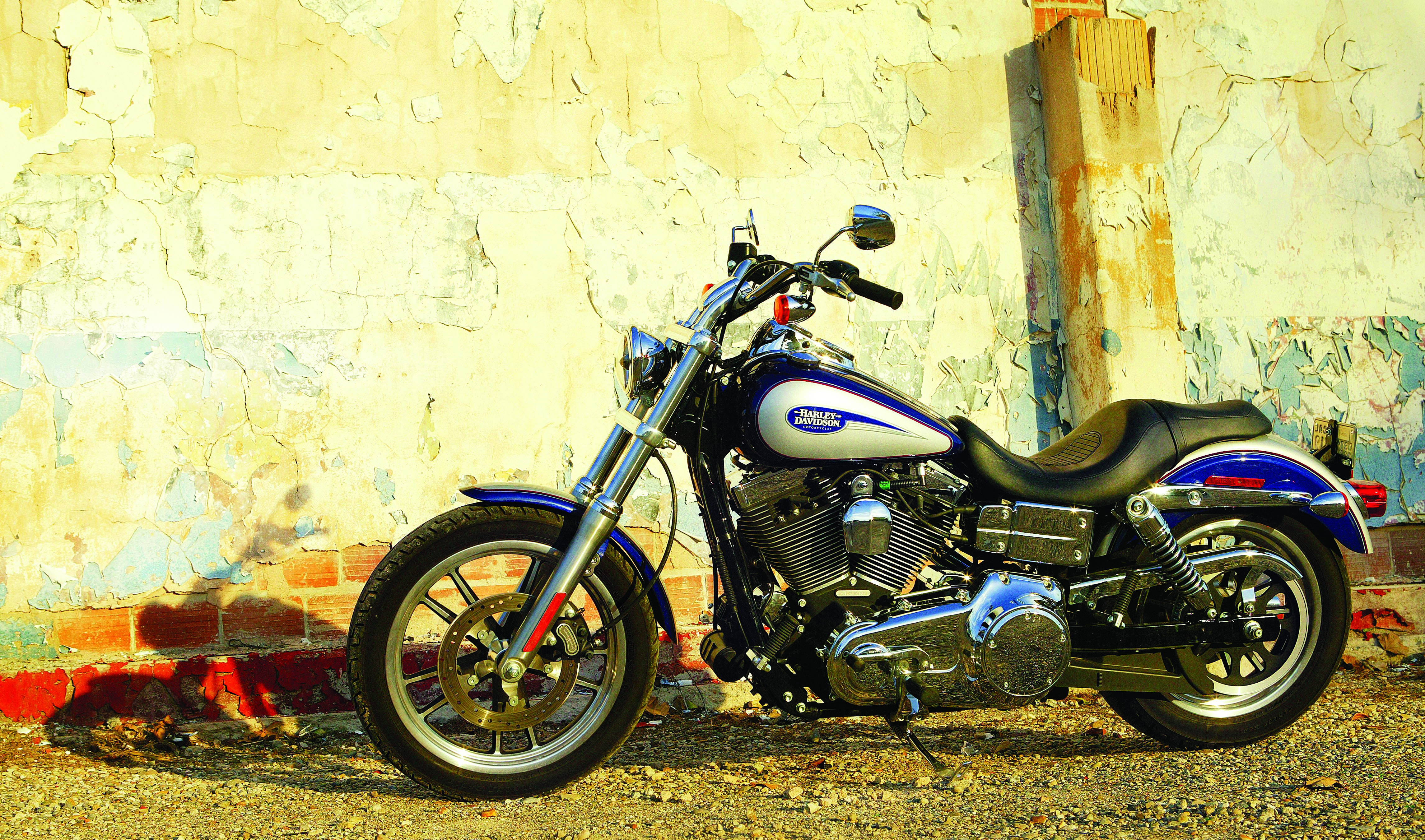

The Dyna Low Rider looks great in front of an old theater.

The Dyna Low Rider looks great in front of an old theater.

Fire up the new Dyna (the key is up on the steering neck) and, thanks to its Electronic Sequential Port Fuel Injection the engine catches first time, every time, hot or cold, and settles into that familiar “potato, potato, potato” idle. Other than the aforementioned changes, it still carries the same air-cooled, longitudinally mounted, 45-degree pushrod V-twin we’ve come to know and love. Compression is 8.9:1, and as always it has two valves per cylinder. With a bore and stroke of 95.18 x 101.52mm, it offers a displacement of 88 cubic inches-or 1,450cc.

The seat is deeply dished, which is how the Low Rider earns its 26.8-inch seat height and name; no Dyna model is lower. Rubber-mounted Harleys have always offered a good bit of shaking in the seat at idle, and the ’06 Low Rider is no exception.

The pull on that cable-actuated clutch lever is now delightfully easy, and the bike goes into gear just as easily. The speedometer sits above the tach on that broad tank, and by the time it indicates 2,500 rpm the engine is already generating a good amount of torque.

Now comes the good part‚Ķlet out the clutch, start stirring that new gearbox with your left foot and shifting is quick, clean and with minimal effort. H-D tells us that the reason for this new buttery shifting is because those old, heavy moving gears that caused the shift have been replaced by new sliding steel “dog rings” that weigh much less. By lightening the mass, shift changes are quicker and smoother, the throw is shorter and the effort required is less. It’s the best-shifting Harley I’ve ever ridden.

A single four-piston caliper at both ends gives the Low Rider good brakes.

A single four-piston caliper at both ends gives the Low Rider good brakes.

If you’re thinking that lighter could be weaker, H-D explains that larger internal bearings, larger gears and a stiffer housing result in improved transmission durability. Torque-carrying capacity has been increased by 28 percent, seals improved and external oil lines have been eliminated. All we can tell you is that the new gearbox works, and well.

Take this bad boy out on the road (wait, isn’t that another Harley model?), and you’ll quickly come to appreciate its other changes. The frame remains a mild-steel, tubular affair with a rectangular-section backbone, but geometry has been revised. Rake angle has been tightened to 30.5 degrees with 4.5 inches of trail, as opposed to 32 degrees and 5.18 inches on last year’s Low Rider. Last year’s 65.5 inch wheelbase has been trimmed to 64.6 inches, all in the interest of quicker, more responsive steering.

Out on my favorite twisty road the more responsive steering was immediately evident, as the Low Rider felt much more precise and focused as opposed to the lazy imprecision of previous years. There’s also adequate cornering clearance now to allow you to have fun before parts start to drag-so long as you’re smooth in the corners.

Part of the Low Rider’s style is that it looks as if a Sportster fork has been grafted onto a Big Twin, which gives it that airy look up front backed by that beefy rear end. New this year is the 49mm fork, a stouter unit that replaces the Low Rider’s previous 41.3mm fork. As for suspension, the new fork rigidity contributes to that more secure handling, but fork action feels much the same. The fork performs well over the easy stuff, but reacts to big bumps and dips with an excess of compression damping. The same goes for those chrome-covered shock absorbers, which have only preload adjustments. They’re well controlled, but also far from plush.

The seating position feels cramped unless the rider uses the highway pegs.

The seating position feels cramped unless the rider uses the highway pegs.

One criticism of the Low Rider involves that big dip in the seat; no, that’s not my attempt at self-deprecating humor. Because it’s so deeply dished the seat holds the rider in place on an initially soft foam that soon turns firm. The seat is placed forward, the footpegs are placed fairly rearward and the handlebar is set back on risers so that my 6-foot frame felt cramped despite being on such a large motorcycle. However, I was able to get some relief out on the straight roads by placing my feet forward on the highway pegs, which of course lures them from the controls. The other consideration is that the Low Rider is not necessarily intended for 6-foot riders, and anyone who has a problem with its ergonomics can find a wealth of aftermarket seats, handlebars and foot controls that will put them just where they want to be.

The other problem is that despite its two-point rubber engine mounting system, the Low Rider had an annoying vibration band at around 3,000 rpm. It was apparent enough through the seat to blur my vision, and because this rpm corresponds to an indicated 72 mph in sixth gear it got in the way of some highway touring. With that said, I have not noticed this vibration band with any other Big Twin Harley in recent memory, and have to conclude that it was likely an aberration on this particular bike rather than representative of the entire Dyna line.

Not new but equally welcome is that the Dyna carries H-D’s four-piston brake calipers on both the front and rear, which produce powerful stops even with the single discs.

A tank-mounted tach and speedometer keep the Dyna’s rider informed.

A tank-mounted tach and speedometer keep the Dyna’s rider informed.

Harley-Davidson prides itself on making big-inch, torquey V-twins, and in fact only went to a five-speed transmission in 1980 with the Tour Glide. I wondered aloud if The Motor Company felt the six-speed was a necessity, or if it was a marketing response to the aftermarket companies that offer six-cog trannies for Harleys. The company spokesman pointed out that having more gears allows the manufacturer to space them differently, and that while peak rpm at 75 mph has only been reduced by a couple hundred rpm from the five-speed, it did deliver improved fuel economy and a smoother ride-not dramatic but noticeable. With that said our test bike delivered 40.6 mpg, which is about in keeping with previous Harleys. The only accurate way to precisely determine exact fuel mileage differences would be to ride two bikes side-by-side for hundreds of miles.

The “evolution” concept as practiced by Harley-Davidson is obviously alive and well with the 2006 Dyna line. Every change has made the bike better rather than just different. We’ll let you decide the evolution vs. intelligent design question. What matters to us is that the thing flat works.
